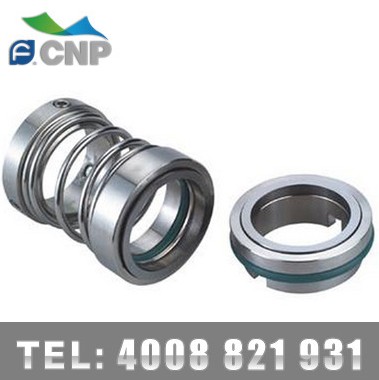

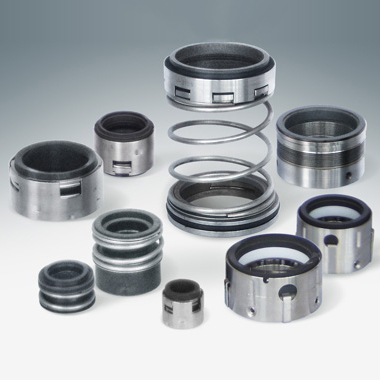

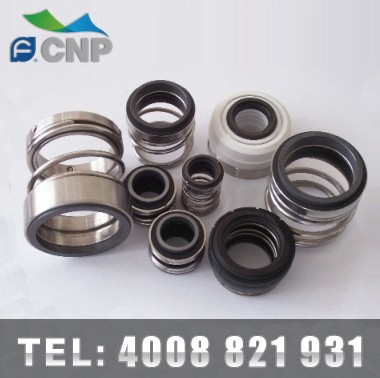

TD系列機械密封適用于單級管道離心泵,配有標準電機和機械密封。此類產品的結構與相近類型產品相比,更不易受到泵送液體中雜質的影響。更換密封,無需拆卸電機。
應用領域:
在化工、制藥、食品加工等行業, 原料的輸送, 系統增壓,混合環路循環泵。
同系列南方泵技術參數如下:
泵型號 Q[m3/h] H[m] n[r/min] 標準電機電壓[V] 1×220V 3×380V P2[kW] P2[kW] TD32-18/2 8 18 2900 1.1 1.1 TD32-21/2 12.5 21 2900 1.5 1.5 TD32-25/2 12.5 25 2900 2.2 2.2 TD32-32/2 12.5 32 2900 3 TD32-38/2 12.5 38 2900 4 TD32-50/2 12.5 50 2900 5.5 TD40-16/2 12.5 16 2900 1.1 1.1 TD40-20/2 12.5 20 2900 1.5 1.5 TD40-18/2 20 18 2900 2.2 2.2 TD40-25/2 20 25 2900 3 TD40-30/2 25 30 2900 4 TD40-36/2 25 36 2900 5.5 TD40-48/2 25 48 2900 7.5 TD50-32/2 12.5 32 2900 3 TD50-38/2 12.5 38 2900 4 TD50-48/2 12.5 48 2900 5.5 TD50-58/2 12.5 58 2900 7.5 TD50-80/2 12.5 80 2900 11 TD50-12/2 16 12 2900 1.1 1.1 TD50-15/2 20 15 2900 1.5 1.5 TD50-18/2 25 18 2900 2.2 2.2 TD50-24/2 25 24 2900 3 TD50-28/2 30 28 2900 4 TD50-35/2 30 35 2900 5.5 TD50-40/2 35 40 2900 7.5 TD50-50/2 40 50 2900 11 TD50-60/2 50 60 2900 15 TD50-70/2 50 70 2900 18.5 TD50-81/2 50 81 2900 22 TD65-36/2 25 36 2900 5.5 TD65-48/2 25 48 2900 7.5 TD65-15/2 30 15 2900 2.2 2.2 TD65-19/2 30 19 2900 3 TD65-22/2 40 22 2900 4 TD65-30/2 40 30 2900 5.5 TD65-34/2 50 34 2900 7.5 TD65-40/2 50 40 2900 11 TD65-50/2 50 50 2900 15 TD65-61/2 50 61 2900 18.5 TD65-67/2 50 67 2900 22 TD65-83/2 50 83 2900 30 TD80-13/2 50 13 2900 3 TD80-18/2 50 18 2900 4 TD80-22/2 50 22 2900 5.5 TD80-28/2 50 28 2900 7.5 TD80-40/2 50 40 2900 11 TD80-48/2 50 48 2900 15 TD80-30/2 80 30 2900 11 TD80-38/2 80 38 2900 15 TD80-47/2 80 47 2900 18.5 TD80-54/2 80 54 2900 22 TD80-67/2 80 67 2900 30 TD100-9/2 50 9 2900 2.2 2.2 TD100-15/2 60 15 2900 4 TD100-17/2 80 17 2900 5.5 TD100-22/2 80 22 2900 7.5 TD100-27/2 100 27 2900 11 TD100-33/2 100 33 2900 15 TD100-40/2 100 40 2900 18.5 TD100-48/2 100 48 2900 22 TD100-52/2 130 52 2900 30 TD125-11/4 120 11 1450 5.5 TD125-14/4 120 14 1450 7.5 TD125-18/4 160 18 1480 11 TD125-22/4 160 22 1480 15 TD125-28/4 160 28 1480 18.5 TD125-32/4 160 32 1480 22 TD125-40/4 160 40 1480 30 TD125-48/4 160 48 1480 37 TD150-12.5/4 200 12.5 1480 11 TD150-17/4 200 17 1480 15 TD150-21/4 200 21 1480 18.5 TD150-25/4 200 25 1480 22 TD150-33/4 200 33 1480 30 TD150-40/4 200 40 1480 37 TD150-50/4 200 50 1480 45 TD200-15/4 300 15 1480 18.5 TD200-18/4 300 18 1480 22 TD200-24/4 300 24 1480 30 TD200-30/4 300 30 1480 37 TD200-35/4 300 35 1480 45 TD200-44/4 300 44 1480 55 TD200-53/4 300 53 1480 75 TD200-12.5/4 400 12.5 1480 22 TD200-20/4 400 20 1480 30 TD200-23/4 400 23 1480 37 TD200-27/4 400 27 1480 45 TD200-32/4 400 32 1480 55 TD200-43/4 400 43 1480 75 TD200-50/4 400 50 1480 90 TD250-15/4 500 15 1480 30 TD250-18/4 500 18 1480 37 TD250-21/4 500 21 1480 45 TD250-27/4 500 27 1480 55 TD250-36/4 500 36 1480 75 TD250-44/4 500 44 1480 90 TD250-53/4 500 53 1480 110 TD250-12.5/4 630 12.5 1480 30 TD250-14/4 630 14 1480 37 TD250-17/4 630 17 1480 45 TD250-20/4 630 20 1480 55 TD250-26/4 630 26 1480 75 TD250-32/4 630 32 1480 90 TD250-40/4 630 40 1480 110 TD250-50/4 630 50 1480 132
